Custom Battery Cables And Battery Wiring Harnesses
Lug cables, high-current connector leads, and compact battery harnesses built around your exact length, gauge, and termination requirements.
MiniProto builds 8 AWG through 4/0 battery cables using tinned copper lugs, SGT, marine tinned, and welding cable options. We also build Anderson SB50, SB120, SB175, SB350, Powerpole PP15-45, PP75, PP120, PP180, and XT series assemblies for prototypes, vehicles, equipment, and battery-powered products.
Why MiniProto
Professional Harnesses Without The Wait
High-Current Build Options
Choose lugged battery cables, connectorized power leads, or mixed battery wiring harnesses with the gauge, jacket, and strain relief your system needs.
Engineer-Reviewed Details
We check connector current, wire gauge, polarity, lug hole size, bend direction, and length callouts before manufacturing.
Prototype Through Small Batch
Order one replacement cable or a repeatable set for low-volume equipment builds without buying more than you need.
Technical Specifications
Connector, Gauge, And Current Guide
Use these common starting points for custom battery cable and power harness requests. Final ratings depend on connector series, wire construction, temperature, and installation.
| Connector | Gauge | Current | Typical Use |
|---|---|---|---|
| Tinned Copper Lugs | 8 AWG to 4/0 | By cable size | Battery links, grounds, bus bars |
| Anderson SB50 | 6 to 10 AWG | Up to 50A typical | Chargers, small EV, equipment power |
| Anderson SB120/SB175 | 1 to 6 AWG | Up to 175A typical | Forklift, robotics, battery packs |
| Anderson SB350 | 1/0 to 4/0 | Up to 350A typical | High-current battery disconnects |
| Powerpole PP15-45/75 | 10 to 20 AWG | 15A to 75A typical | Modular DC distribution |
| Powerpole PP120/180 | 1 to 6 AWG | 120A to 180A typical | Industrial DC power |
| XT30/XT60/XT90 | 8 to 18 AWG | By connector size | Compact LiPo and DC power leads |
We derate recommendations for sustained loads, tight enclosures, elevated temperature, and harness bundling.
Cable And Lug Work
- Tinned copper lugs with requested stud size and clocking
- Heatshrink labels, adhesive-lined boots, and polarity color coding
- SGT, marine tinned, and welding cable options
Connectorized Power Leads
- Anderson SB and Powerpole assemblies for DC distribution
- XT series adapters for compact battery products
- Continuity and polarity checks before shipment
Popular Preconfigured Builds
Start From A Reviewed Configuration
Use these catalog builds as a starting point, or send a drawing when the assembly needs connector, pinout, or routing review.

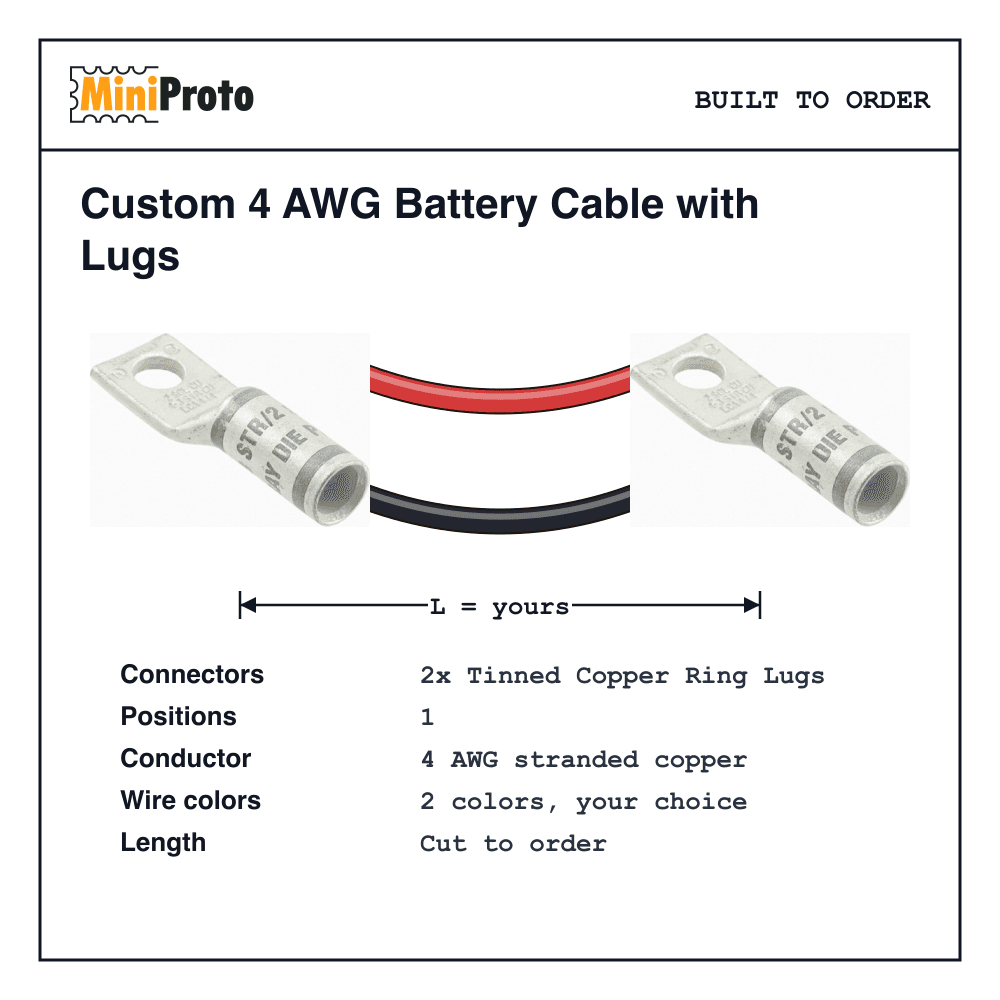

Custom 4 AWG Battery Cable with Lugs
Configure For Price

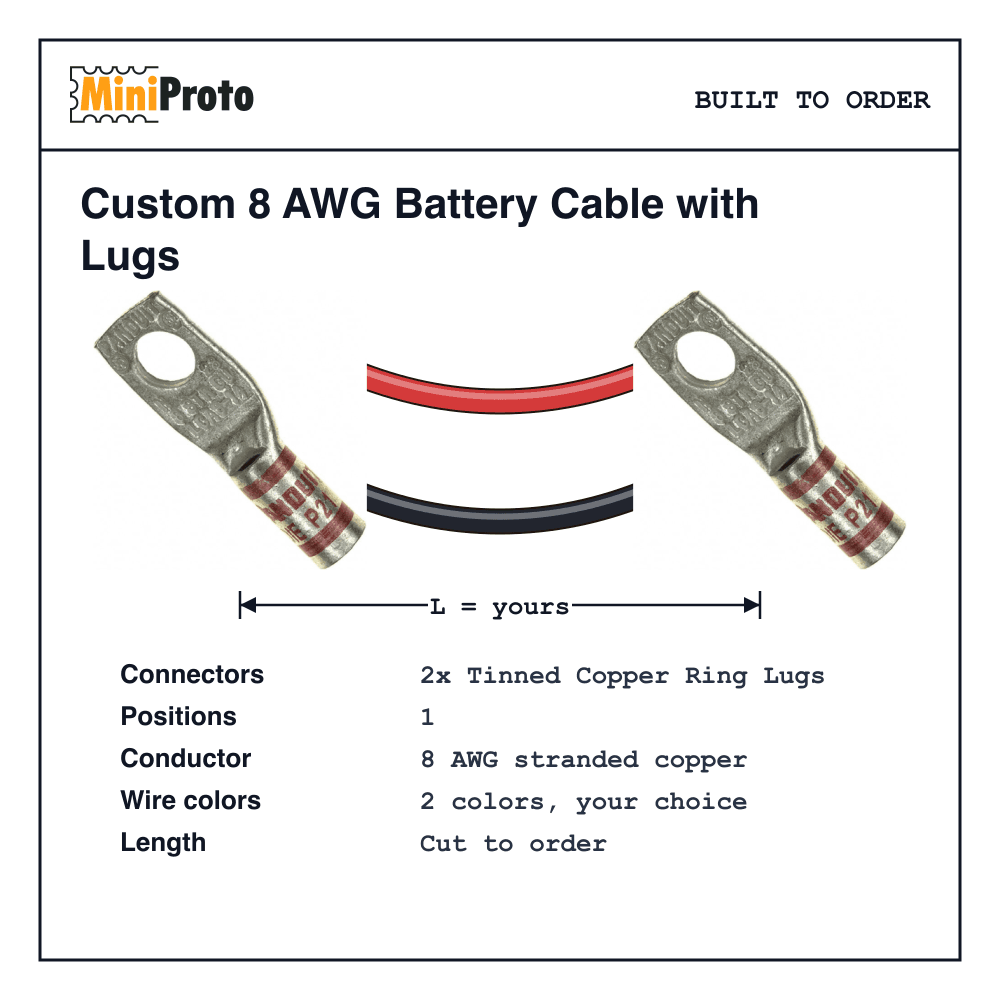

Custom 8 AWG Battery Cable with Lugs
Configure For Price

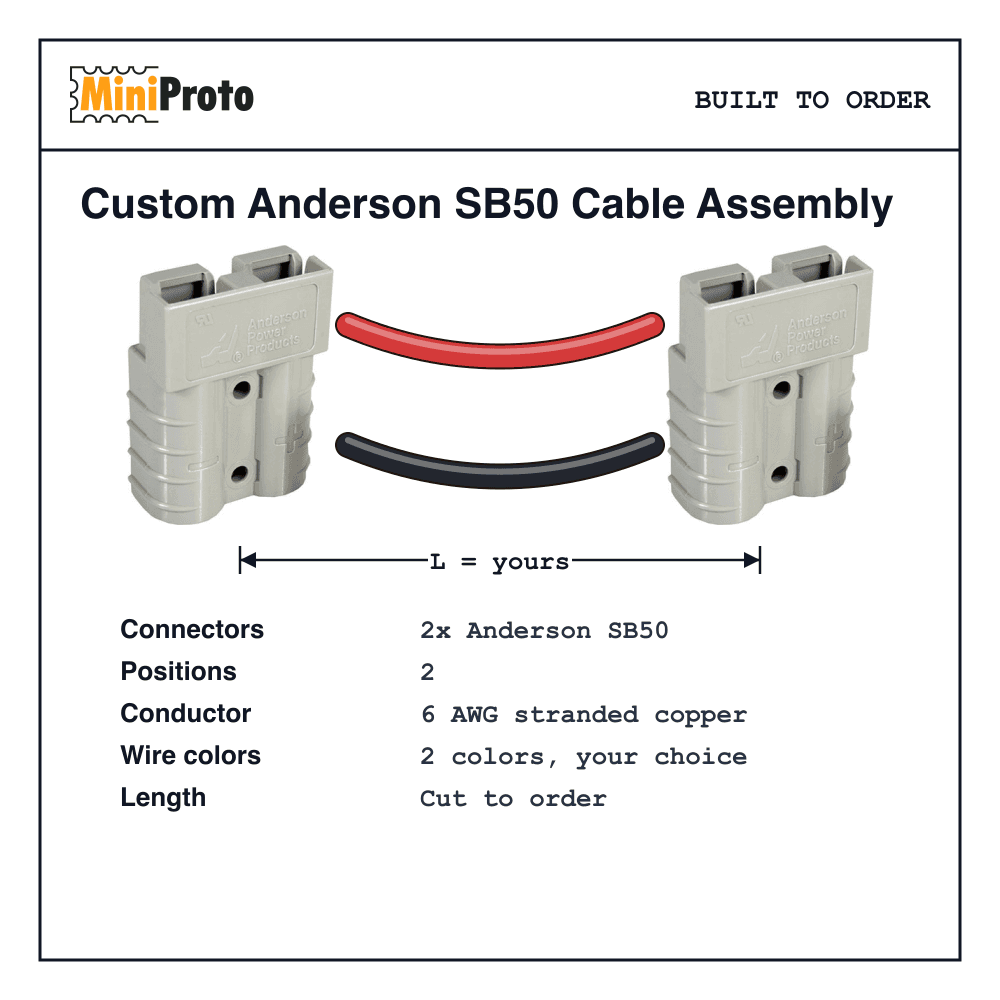

Custom Anderson SB50 Cable Assembly
Configure For Price

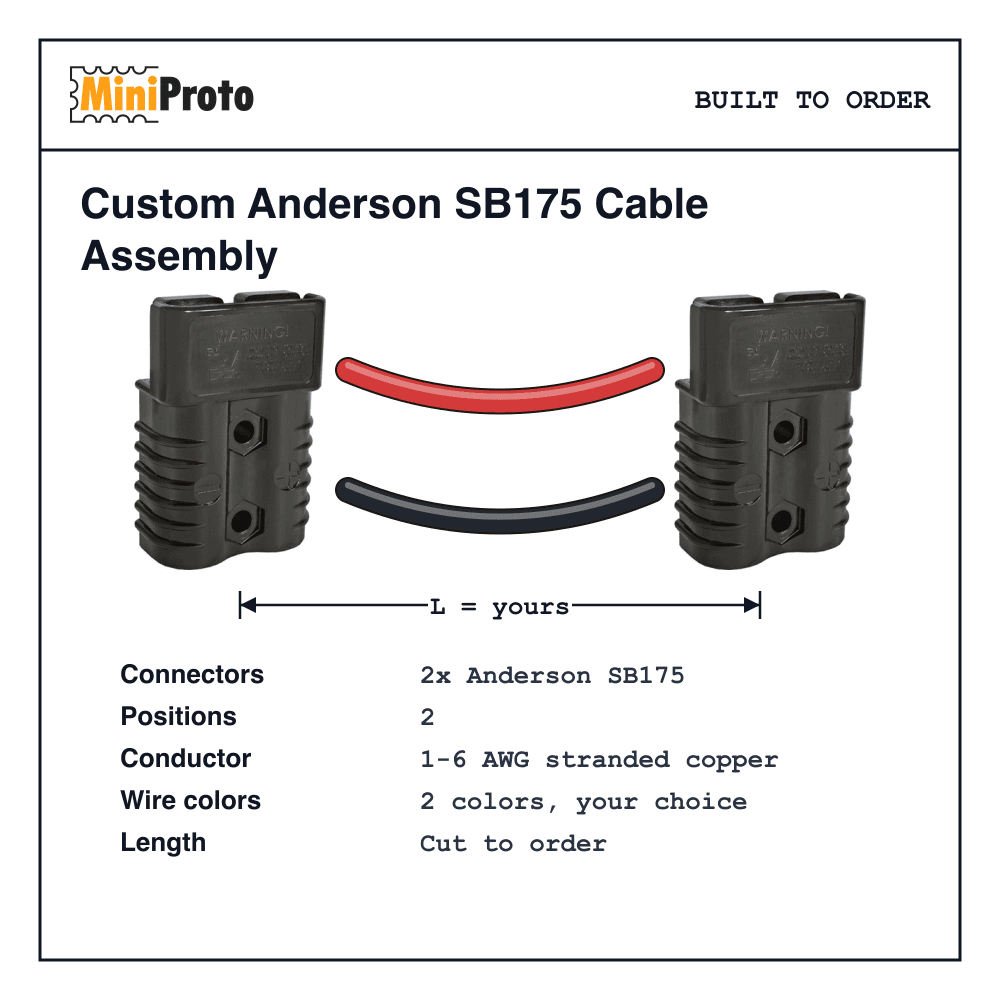

Custom Anderson SB175 Cable Assembly
Configure For Price

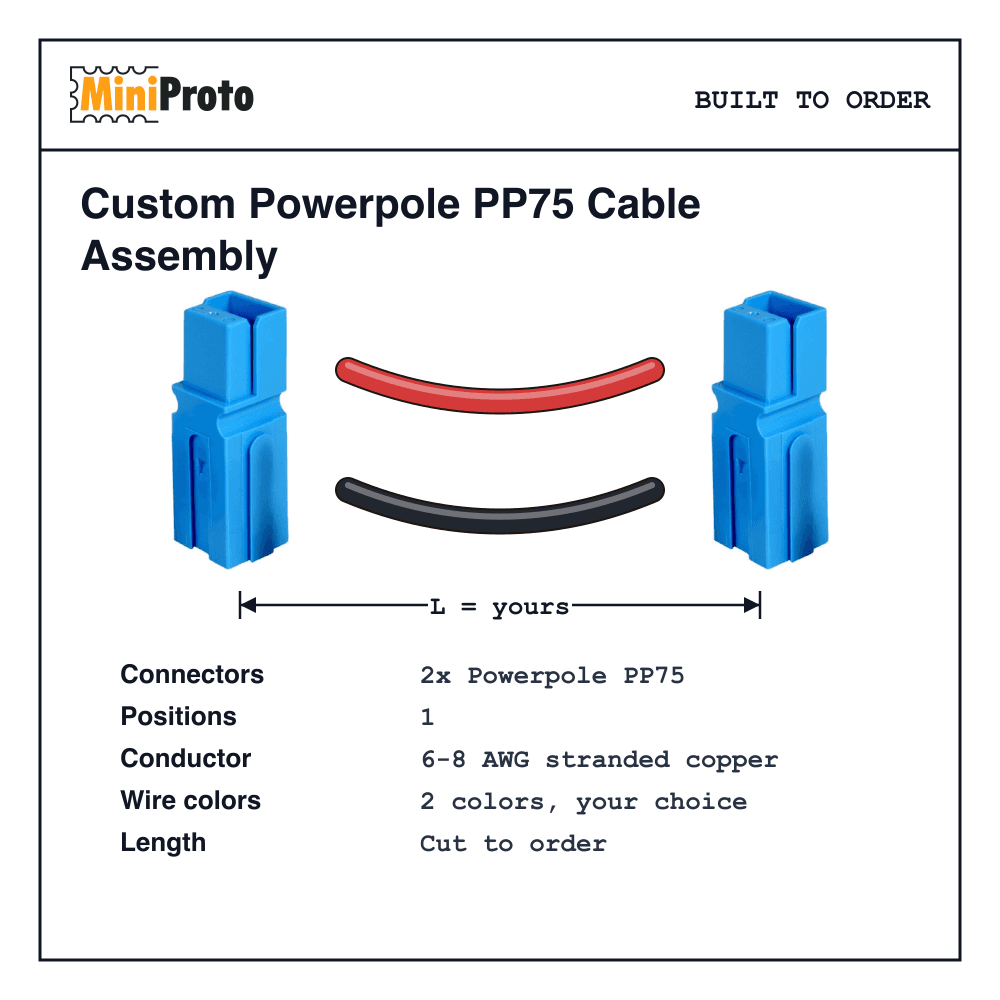

Custom Powerpole PP75 Cable Assembly
Configure For Price

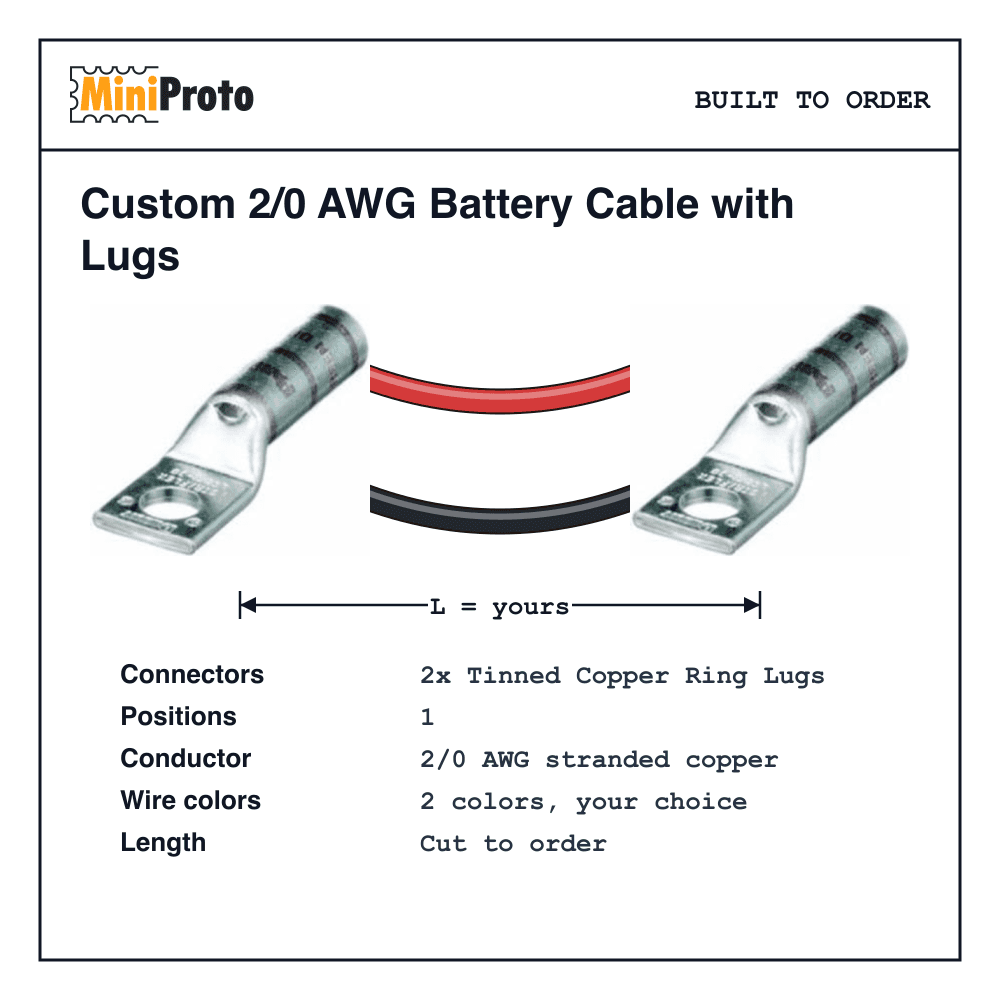

Custom 2/0 AWG Battery Cable with Lugs
Configure For Price
Applications
Built Around Real Installations
Battery pack leads and charger adapters
Robotics and AGV power distribution
Marine battery links and trolling motor leads
Equipment grounds, bus links, and disconnect cables
Process
From Requirements To Tested Harnesses
Share Requirements
Send a sketch, drawing, old cable, or connector list with length, gauge, polarity, and quantity.
Engineering Review
We check connector fit, lug selection, cable type, current path, and manufacturability.
Build And Test
Assemblies are cut, crimped, labeled, continuity checked, and packed for installation.
