Custom TE Deutsch DTM to TE Deutsch DTM Wire Harness Assembly

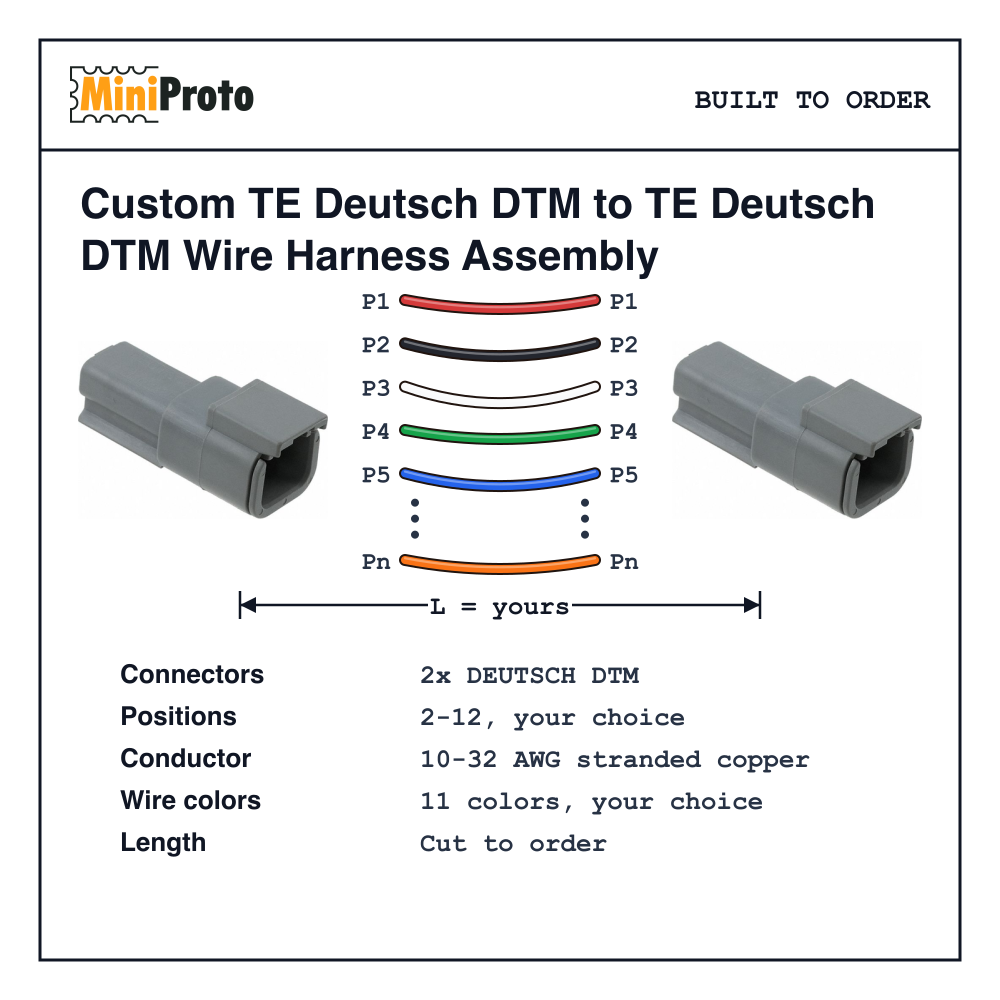

Custom TE Deutsch DTM to TE Deutsch DTM Wire Harness Assembly configured from CV2-backed connector and wire options.
| Pin counts stocked | 2, 3, 4, 6, 8, 12 |
|---|---|
| Housing MPNs | DTM04-2P, DTM06-2S, DTM04-3P, DTM06-3S, DTM04-4P, DTM06-4S, DTM04-6P, DTM06-6S, DTM04-08PA, DTM04-08PB, DTM06-08SA, DTM06-08SB, DTM04-12PA, DTM04-12PB, DTM04-12PC, DTM04-12PD, DTM06-12SA, DTM06-12SB, DTM06-12SC, DTM06-12SD |
| Crimp / seal | Size-20 contacts 0460-202-2031 pin / 1062-20-0144 socket, required WM-series wedgelocks (WM-2P/S through WM-12P/S); unused cavities take sealing plugs so the sealed shell stays a sealed shell. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "DTM06-2S"
},
"side": "left"
},
{
"ref": {
"mpn": "DTM06-2S"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
}
]
}
