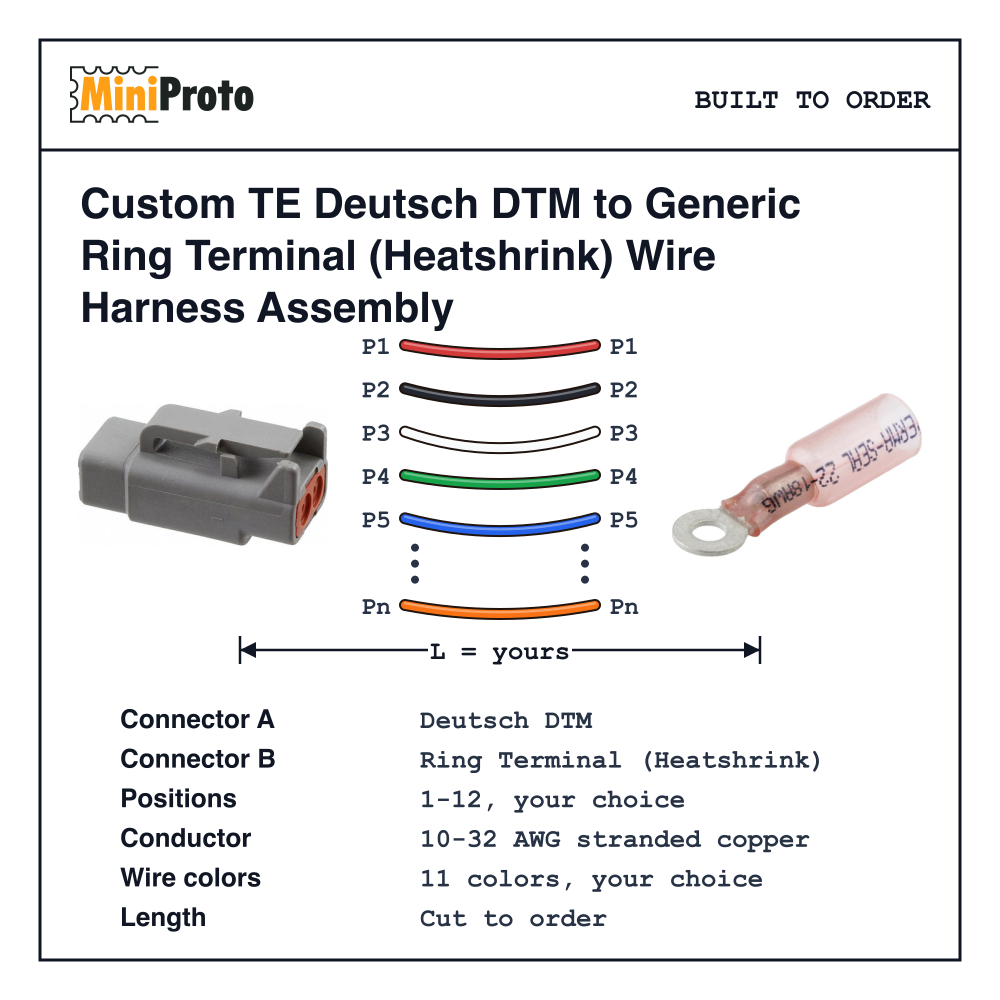

Custom TE Deutsch DTM to Generic Ring Terminal (Heatshrink) Wire Harness Assembly
Custom TE Deutsch DTM to Generic Ring Terminal (Heatshrink) Wire Harness Assembly, proudly assembled in the USA with a fast two-week lead time. Fully customizable pin count, length, and gender. Ideal for automotive, aerospace, and industrial control applications. The TE Deutsch DTM connector ensures a compact, weatherproof connection, while heatshrink ring terminals provide secure, corrosion-resistant wiring. Upgrade today with this durable, high-performance harness designed for demanding environments!
| Pin counts stocked | 1, 2, 3, 4, 6, 8, 12 |
|---|---|
| Housing MPNs | DTM06-2S, DTM04-2P, DTM06-3S, DTM04-3P, DTM06-4S, DTM04-4P, DTM06-6S, DTM04-6P, DTM06-08SB, DTM06-08SD, DTM06-08SA, DTM06-08SC, DTM04-08PC, DTM04-08PA, DTM04-08PD, DTM04-08PB, DTM06-12SA, DTM06-12SB, DTM06-12SC, DTM06-12SD, DTM04-12PA, DTM04-12PB, DTM04-12PC, DTM04-12PD, 191640033, 191640032, 0191640003, 0191640085, 0191640086, 191640038, 0191640026, 191640061, 0191640063, 0191640027, 191640062, 0191640004, 0191640005, 0191640020, 191640066, 191640067, 191640068, 0191640081, 0191640083, 0191640080, 191640889 |
| Crimp / seal | DTM size-20 contacts 0460-202-2031 pin / 1062-20-0144 socket, required WM-series wedgelocks; unused cavities take sealing plugs so the sealed shell stays sealed. Heatshrink ring terminals crimp onto the conductor and shrink over the barrel — they are not Deutsch cavity seals. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "DTM06-2S"
},
"side": "left"
},
{
"ref": {
"mpn": "191640033"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
}
]
}
