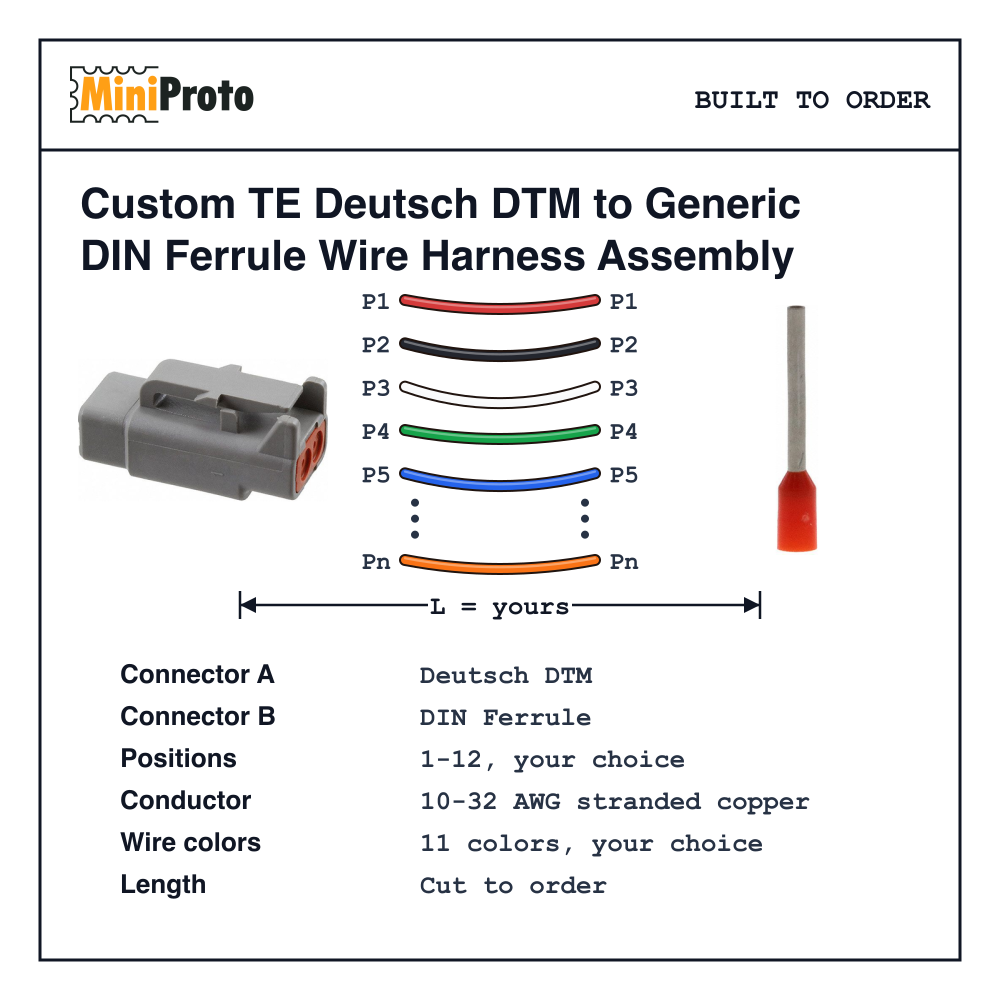

Custom TE Deutsch DTM to Generic DIN Ferrule Wire Harness Assembly
Custom TE Deutsch DTM to Generic DIN Ferrule Wire Harness Assembly, assembled in the USA and built to the production lead time shown at checkout. Fully customizable pin count, length, and gender. Reliable, durable, and precision-made!
Production lead time: 2-4 weeks.
| Pin counts stocked | 1, 2, 3, 4, 6, 8, 12 |
|---|---|
| Housing MPNs | DTM06-2S, DTM04-2P, DTM06-3S, DTM04-3P, DTM06-4S, DTM04-4P, DTM06-6S, DTM04-6P, DTM06-08SB, DTM06-08SD, DTM06-08SA, DTM06-08SC, DTM04-08PC, DTM04-08PA, DTM04-08PD, DTM04-08PB, DTM06-12SA, DTM06-12SB, DTM06-12SC, DTM06-12SD, DTM04-12PA, DTM04-12PB, DTM04-12PC, DTM04-12PD, 121010150, 121210100, 12510025, 12510034, 12610050, 12710025, 12710034, 12710150, 12810050, 12810150, 121010075, 121010100, 121210075, 12610100, 12710100, 12810100, 121210400, 1076980000, 1076990000, 9019030000, 1181010, 1181050, 1181075, 121010250, 121010400, 121010600, 121210150, 121210250, 121210600, 121510150, 121510250, 121810150, 121810250, 122010150, 122010250, 122010400, 12710250, 12910400, 565600000, F75-10-M, 11101050, 11101075, 1161075, 1181015, 121510400, 121510600, 121810400, 121810600, 2202.0, 9019040000, 9019050000, F75-6-M, F75-8-M, 2397.0, 2398.0, 3127.0, 9019060000, 11121075, 2620.0, 11101010, 11121010, 1161010, 1181025, 1181208, 2621.0, 3080.0, 11181015, 11121025, 11610025, 1161014, 1161034, 11810025, 1181014, 1181034, 2-966067-3, 565700000, FSD75-6-D, 1-966066-5, 11101015, 11101040, 11121015, 11121040, 1161015, 11181025, 9019220000, 1200164, 11181040, 216-246, F82-20-M, 9018520000, 9018510000, 1381010, 1381050, 9037390000, 9037470000, 9037480000, 13101010, 13101075, 1381075, 9037500000, 966144-3, 9037510000, 9037560000, 216-542, 9037550000, 9037530000, 9037540000, 9037520000, FTD75-8-D, 13141060 |
| Crimp / seal | DTM size-20 contacts 0460-202-2031 pin / 1062-20-0144 socket, required WM-series wedgelocks; unused cavities take sealing plugs. DIN ferrules are bootlace end-terminations on the pigtail, not cavity seals for the DTM shell. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 2-4 weeks |
{
"connectors": [
{
"ref": {
"mpn": "DTM06-2S"
},
"side": "left"
},
{
"ref": {
"mpn": "9018520000"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
}
]
}
