Custom TE Deutsch DT to TE Deutsch DT Wire Harness Assembly

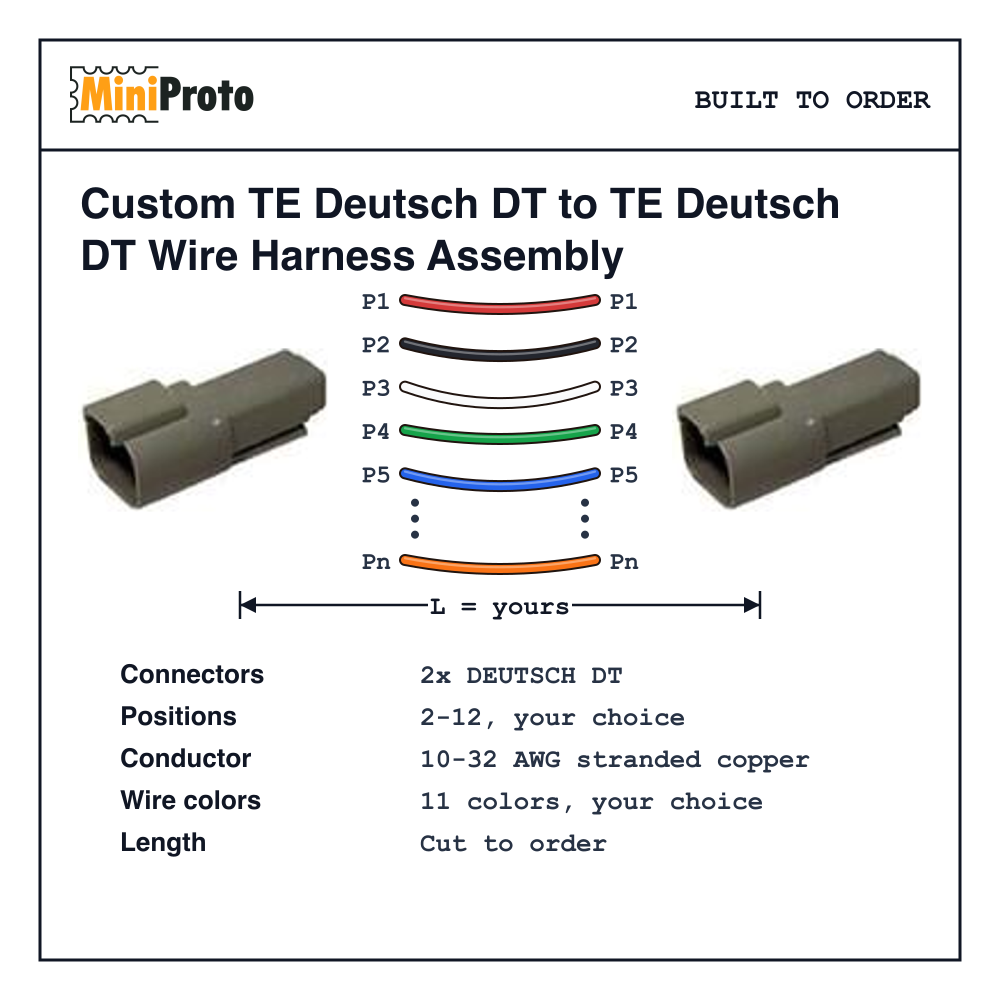

Custom TE Deutsch DT to TE Deutsch DT Wire Harness Assembly configured from CV2-backed connector and wire options.
| Pin counts stocked | 2, 3, 4, 6, 8, 12 |
|---|---|
| Housing MPNs | DT04-2P, DT04-2P-C015, DT06-2S, DT06-2S-C015, DT04-3P, DT04-3P-C015, DT06-3S, DT06-3S-C015, DT04-4P, DT04-4P-C015, DT06-4S, DT06-4S-C015, DT04-6P, DT04-6P-C015, DT06-6S, DT06-6S-C015, DT04-08PA, DT04-08PA-C015, DT04-08PB, DT04-08PB-C015, DT04-08PC, DT04-08PC-C015, DT04-08PD, DT06-08SA, DT06-08SA-C015, DT06-08SB-C015, DT06-08SC, DT06-08SC-C015, DT06-08SD, DT04-12PA, DT04-12PA-C015, DT04-12PB, DT04-12PB-C015, DT04-12PC, DT04-12PC-C015, DT04-12PD, DT04-12PD-C015, DT06-12SA, DT06-12SA-C015, DT06-12SB, DT06-12SB-C015, DT06-12SC, DT06-12SC-C015, DT06-12SD |
| Crimp / seal | Size-16 contacts 0460-202-16141 pin / 1062-16-0122 socket, required W-series wedgelocks, N-seal (~2.24–3.68 mm OD) or E-seal (~1.35–3.05 mm OD) rear seals; unused cavities need sealing plugs for IP68. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "DT04-2P"
},
"side": "left"
},
{
"ref": {
"mpn": "DT04-2P"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "18 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "18 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
}
]
}
