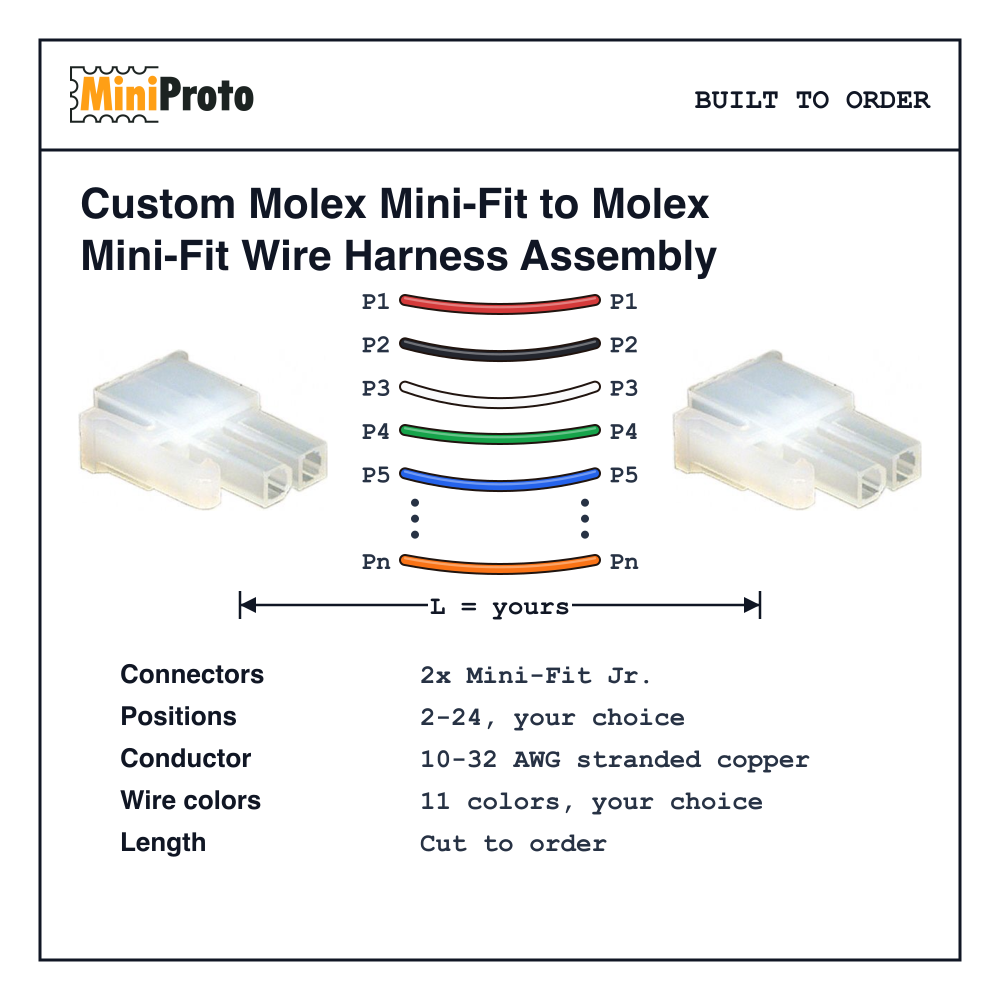

Custom Molex Mini-Fit to Molex Mini-Fit Wire Harness Assembly
Our Custom Molex Mini-Fit to Molex Mini-Fit wire harness assembly is built to order, providing a dependable, high-power connection in a compact form factor. Ideal for industrial equipment, automotive systems, and consumer electronics, each harness is customized to your exact specifications, including wire length, gauge, and connector configurations. Built for a secure, reliable fit, and ready to ship in just two weeks, this assembly offers fast, seamless integration into your design.
| Pin counts stocked | 2, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24 |
|---|---|
| Housing MPNs | 0039012020, 0469990655, 0469990656, 0039014020, 0039013025, 0039013023, 0469990275, 0039012021, 0039012040, 0039013043, 0039014046, 0469990276, 0039013045, 0039012041, 1726460412, 0039014043, 0469990294, 0469930411, 0039014050, 0039014052, 0039014056, 0469940512, 1726460513, 0039013063, 0039012060, 0039012061, 0469990277, 0039039062, 0039014066, 0039014063, 0469940612, 0469930611, 0039013083, 0039012080, 0039012081, 0039013085, 0469990296, 0469930811, 0039012100, 0039013103, 0039012101, 0039039102, 0469990297, 0469931011, 0039012121, 0039039122, 0039013123, 0469990298, 0469931211, 0039039142, 0039012140, 0039012141, 0039013143, 0469931410, 0039012160, 0039012161, 0039013169, 0469921610, 0469931610, 0039012180, 0039013183, 0469921810, 0469931810, 0039012181, 0039012200, 0039012201, 0039013203, 0039012220, 0039012221, 0039012240, 0039012241, 0469922410, 0039012246 |
| Crimp / seal | Unsealed Mini-Fit Jr.: 5556 female terminals in 5557 receptacles, 5558 male terminals in 5559 plugs; TPA2 optional. 9 A with 5556 on 24–18 AWG; 13 A with 45750 HCS and 16 AWG. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
