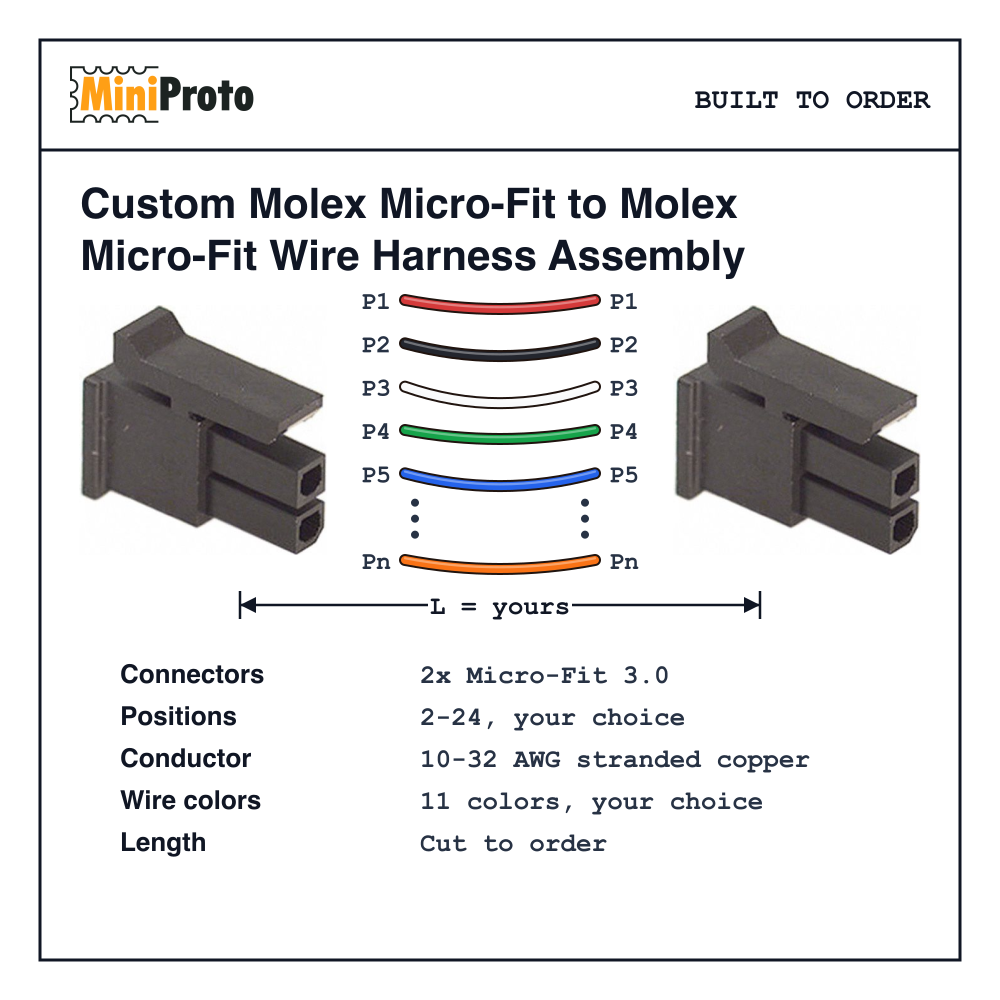

Custom Molex Micro-Fit to Molex Micro-Fit Wire Harness Assembly
Our Custom Molex Micro-Fit to Molex Micro-Fit wire harness assembly is designed for precision and durability, supporting high-current connections in compact spaces. Perfect for industrial automation, automotive applications, and power distribution, each harness is tailored to your specifications, including wire gauge, length, and connector configurations. Built for seamless integration, it’s ready to ship within two weeks.
| Pin counts stocked | 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24 |
|---|---|
| Housing MPNs | 430250200, 430200201, 430200200, 430250400, 430200600, 430200601, 430250600, 430200801, 430250800, 430200800, 430251000, 430201000, 430201001, 430201201, 430201200, 430251208, 430201401, 430251400, 430201400, 430201601, 430251600, 430201600, 430201801, 430251800, 430201800, 430252000, 430202000, 430202011, 430202200, 430252200, 430202201, 430252400, 430202400, 430202401 |
| Crimp / seal | 43030 female / 43031 male crimps into 43025 receptacles and 43020 plugs; TPA 172952/172953 dual-row, 203632 plug TPA, 171850/200875 single-row 2–7 circuits. Unsealed 3.0 mm Fit family. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "430200201"
},
"side": "left"
},
{
"ref": {
"mpn": "430200201"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
}
]
}
