Custom JST XH to JST PH Wire Harness Assembly

Custom JST XH to JST PH Wire Harness Assembly

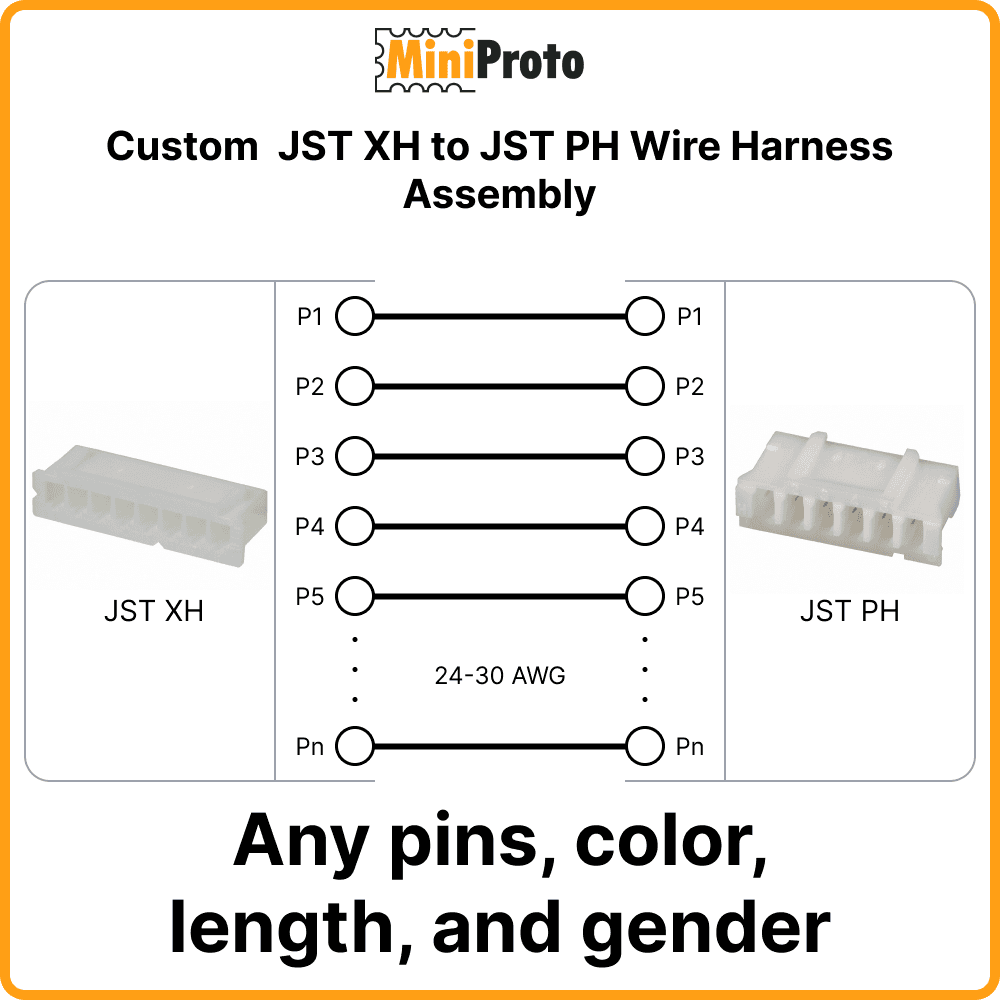

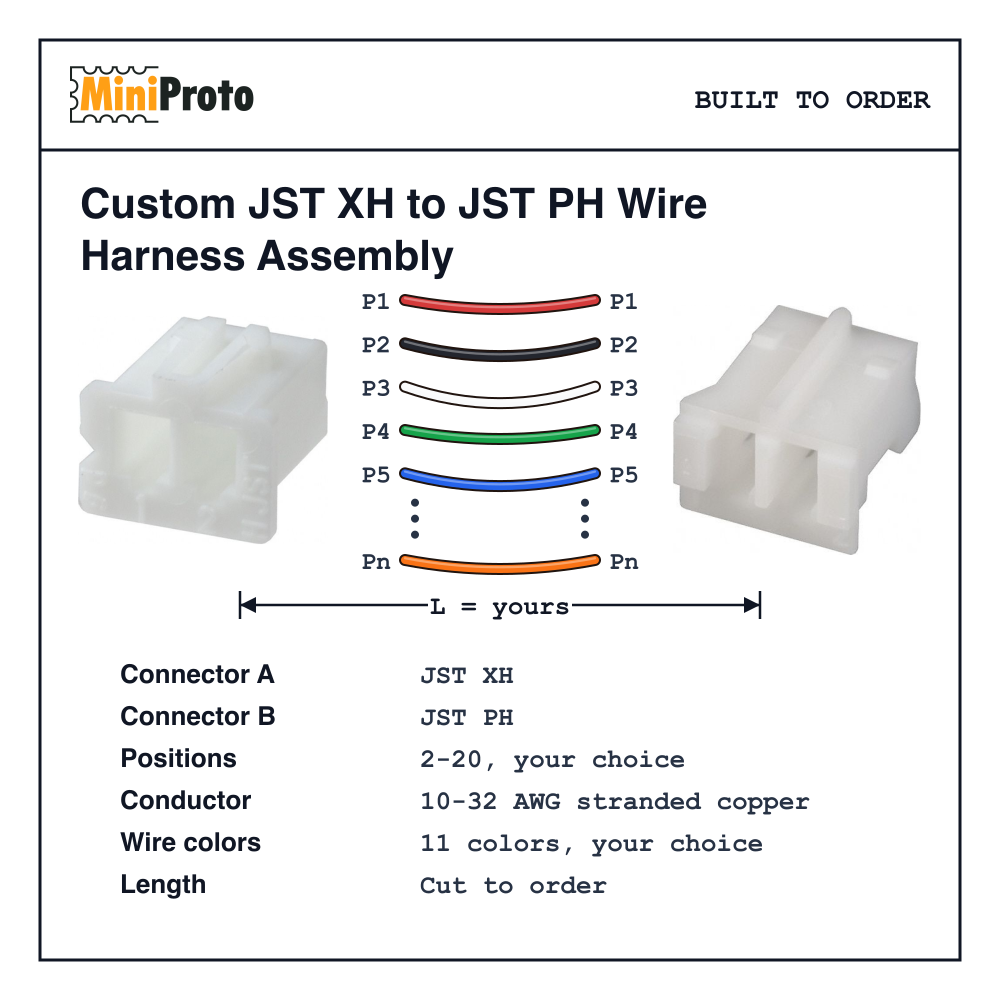

Custom JST XH to JST PH Wire Harness Assembly: Our custom JST XH to JST PH wire harness assembly ensures reliable connections for compact electronic systems. Fully customizable to your required wire length and gauge, it offers precise performance and quick shipping in 2-3 days.

Harness Options

mm
$4.25
$4.25 per unit

Need a more complex harness?

We offer custom harnessing solutions for more advanced requirements.

Explore Custom Harnessing

Product Details

Benefits of JST XH Connectors

JST XH connectors are widely used across various industries for their reliability and compact design. Here’s why JST XH connectors are an ideal choice:

  • Compact Design
    With a 2.5mm pitch, JST XH connectors offer a space-saving solution without compromising connection quality, making them ideal for compact electronics.
  • Low-Cost, High-Reliability
    JST XH connectors provide a dependable connection at a low cost, balancing affordability with durable performance.
  • Versatile Applications
    Commonly used in consumer electronics, robotics, and automotive applications, JST XH connectors suit a wide range of low-power, low-current setups.
  • Easy Assembly
    JST XH connectors are designed for easy and secure assembly, minimizing installation time and reducing the risk of misconnection.
  • Resistant to Vibration and Disconnection
    With a firm locking mechanism, JST XH connectors are well-suited to applications where vibration resistance is crucial, ensuring connections stay secure.
  • Customizable Options
    Available in various pin counts, wire lengths, and configurations, JST XH connectors provide the flexibility to meet your specific project needs.

JST XH connectors are an excellent choice when you need a reliable, cost-effective solution for low-power applications in a compact form factor.

Benefits of JST PH Connectors

JST PH connectors are popular for their small size and reliability, making them a top choice for compact, low-power applications. Here’s why they’re an ideal solution:

  • Ultra-Compact Design
    With a 2.0mm pitch, JST PH connectors are even smaller than JST XH connectors, offering a space-saving solution for densely packed electronics.
  • Cost-Effective Reliability
    Known for their affordability, JST PH connectors provide a secure and consistent connection, balancing cost with reliable performance.
  • Ideal for Low-Power Applications
    Designed for low-power, low-current uses, JST PH connectors are perfect for small electronics, sensors, and battery connections.
  • Secure Locking Mechanism
    JST PH connectors feature a firm locking system that prevents accidental disconnection, essential for applications where stability is key.
  • Easy to Use and Install
    Simple to assemble and connect, JST PH connectors make installation quick and reduce errors, saving time in the assembly process.
  • Flexible Configurations
    Available in multiple pin counts and wire lengths, JST PH connectors are versatile enough to meet various design specifications.

JST PH connectors offer a compact, affordable, and reliable option for low-power applications, ideal for projects requiring small, dependable connections.

Why Choose MiniProto for Custom Wire Harnesses?

MiniProto stands for quality and customer confidence. Here’s why we’re the trusted choice:

  • Comprehensive Warranty
    Every harness is backed by a 60-day manufacturing warranty with hassle-free returns for any defects. We’re committed to ensuring each order meets your standards.
  • Rapid Turnaround
    With prototypes assembled in the USA, we offer delivery within 1-2 weeks to keep your projects on track.
  • Flexible Ordering
    MiniProto adapts to any project scale, from single prototypes to large production runs, with no minimum order requirements.
  • Transparent Pricing
    We provide upfront, clear pricing so you can design and budget with confidence—no hidden fees or unexpected costs.
