Custom JST XH to Generic Ring Terminal (Heatshrink) Wire Harness Assembly

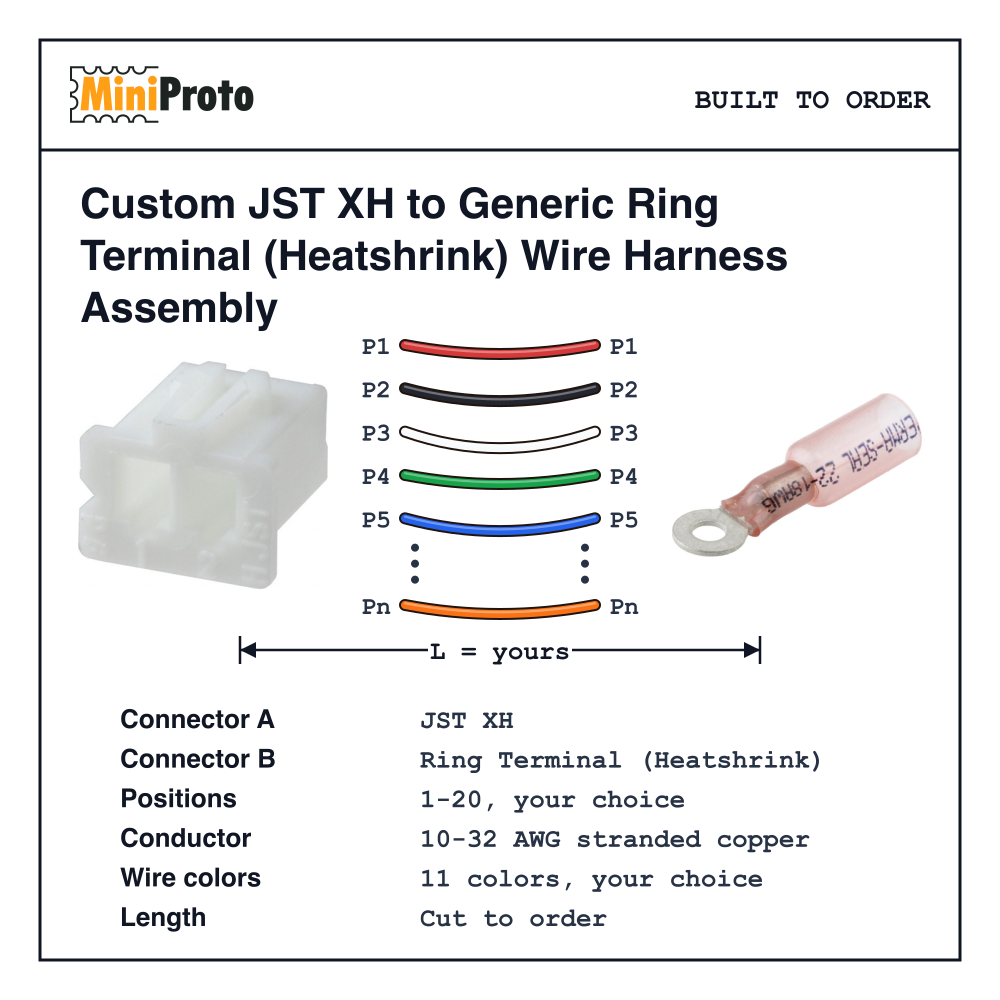

Custom JST XH to Generic Ring Terminal (Heatshrink) Wire Harness Assembly, proudly assembled in the USA with a fast two-week lead time. Fully customizable pin count, length, and gender. Perfect for PCB connections, power distribution, and industrial control systems. JST XH ensures secure, compact connections, while heatshrink ring terminals provide robust, corrosion-resistant wiring. Upgrade to this durable, high-performance harness today for reliable connectivity in demanding applications!
| Pin counts stocked | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 20 |
|---|---|
| Housing MPNs | XHP-2, XHP-3, XHP-4, XHP-5, XHP-6, XHP-7, XHP-8, XHP-9, XHP-10, XHP-11, XHP-12, XHP-13, XHP-14, XHP-15, XHP-16, XHP-20, 191640033, 191640032, 0191640003, 0191640085, 0191640086, 191640038, 0191640026, 191640061, 0191640063, 0191640027, 191640062, 0191640004, 0191640005, 0191640020, 191640066, 191640067, 191640068, 0191640081, 0191640083, 0191640080, 191640889 |
| Crimp / seal | Unsealed 2.5 mm JST XH: SXH-001T-P0.6 / SXH-001T-P0.6N / SXH-002T-P0.6 sockets in XHP housings, 22–30 AWG, 3 A / 250 V. Heatshrink ring terminals crimp onto the conductor and shrink over the barrel; they are not sealed connector cavities. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "XHP-2"
},
"side": "left"
},
{
"ref": {
"mpn": "191640033"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
}
]
}
