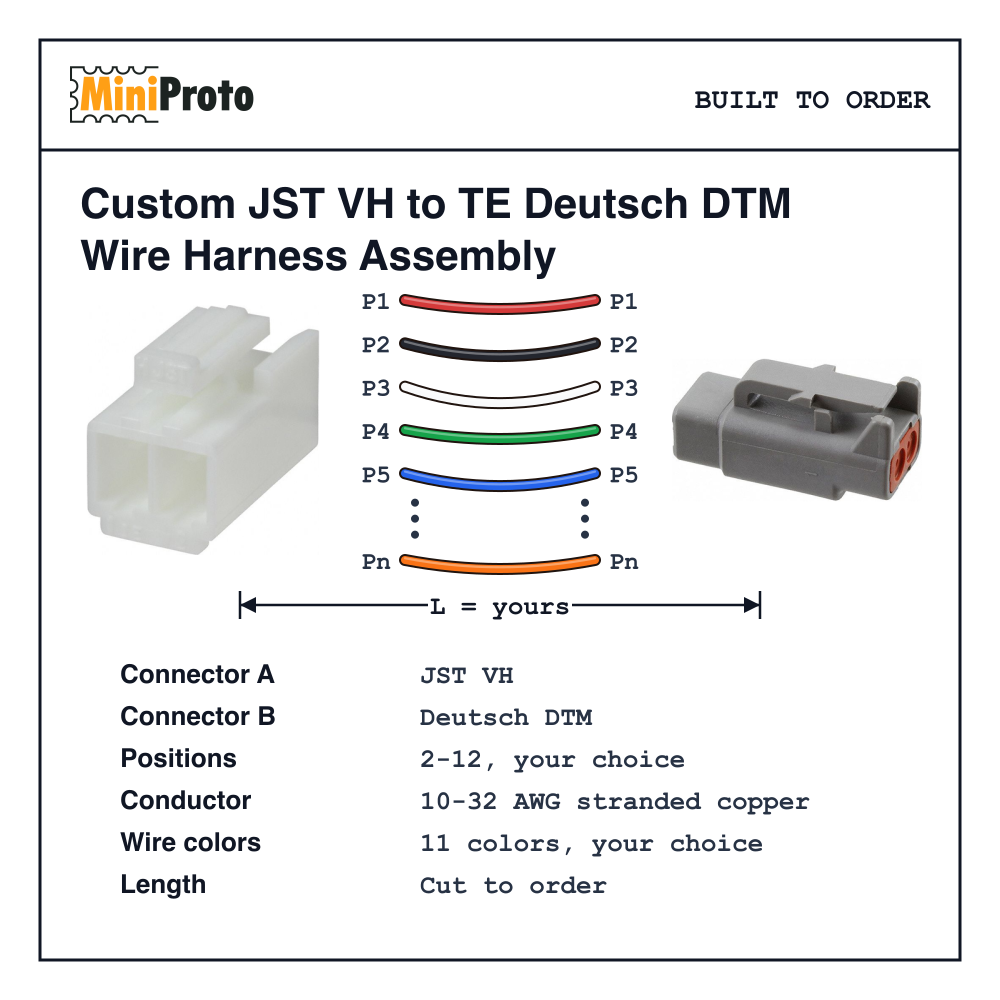

Custom JST VH to TE Deutsch DTM Wire Harness Assembly
Assembled in the USA with a two-week base lead time, this wire harness is fully customizable in pin count, length, and gender. Ideal for automotive diagnostics, marine applications, and industrial controls, it pairs JST VH’s high-current capabilities with TE Deutsch DTM’s compact, sealed connectors for reliable performance in tight, demanding environments. Fun fact: The Deutsch DTM series is specifically engineered for lightweight applications requiring environmental protection. Order now for a durable, custom solution!
| Pin counts stocked | 2, 3, 4, 6, 8, 12 |
|---|---|
| Housing MPNs | VHR-2N, VHR-3N, DTM06-2S, DTM04-2P, DTM06-3S, DTM04-3P, DTM06-4S, DTM04-4P, DTM06-6S, DTM04-6P, DTM06-08SB, DTM06-08SD, DTM06-08SA, DTM06-08SC, DTM04-08PC, DTM04-08PA, DTM04-08PD, DTM04-08PB, DTM06-12SA, DTM06-12SB, DTM06-12SC, DTM06-12SD, DTM04-12PA, DTM04-12PB, DTM04-12PC, DTM04-12PD |
| Crimp / seal | Unsealed 3.96 mm JST VH: SVH-21T-P1.1 (18–22 AWG) / SVH-41T-P1.1 (16–20 AWG) sockets in VHR housings, 10 A / 250 V. DTM size-20 contacts 0460-202-2031 pin (18–20 AWG) / 1062-20-0144 socket (20–24 AWG), required WM-series wedgelocks; unused cavities take sealing plugs. Family overlap 18–22 AWG; only 20 AWG is common to both cited DTM contacts (pin 0460-202-2031 18–20, socket 1062-20-0144 20–24). |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
