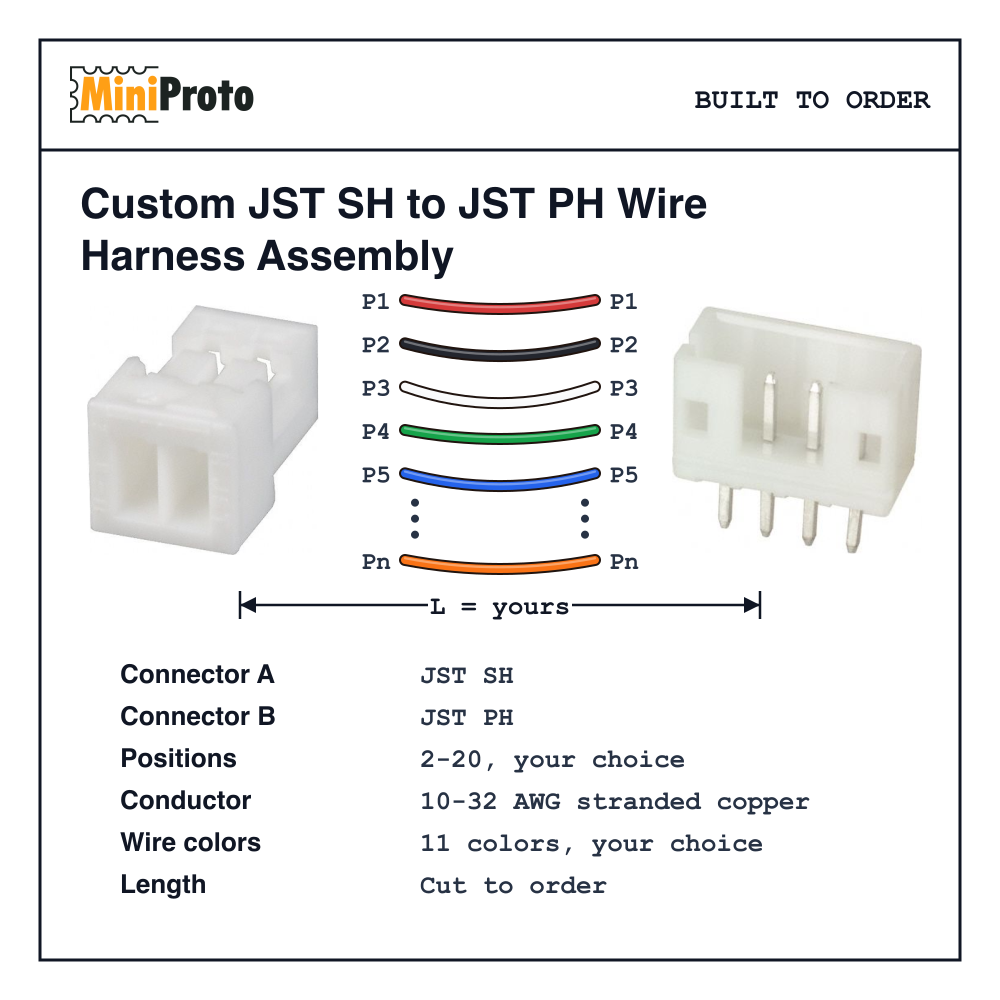

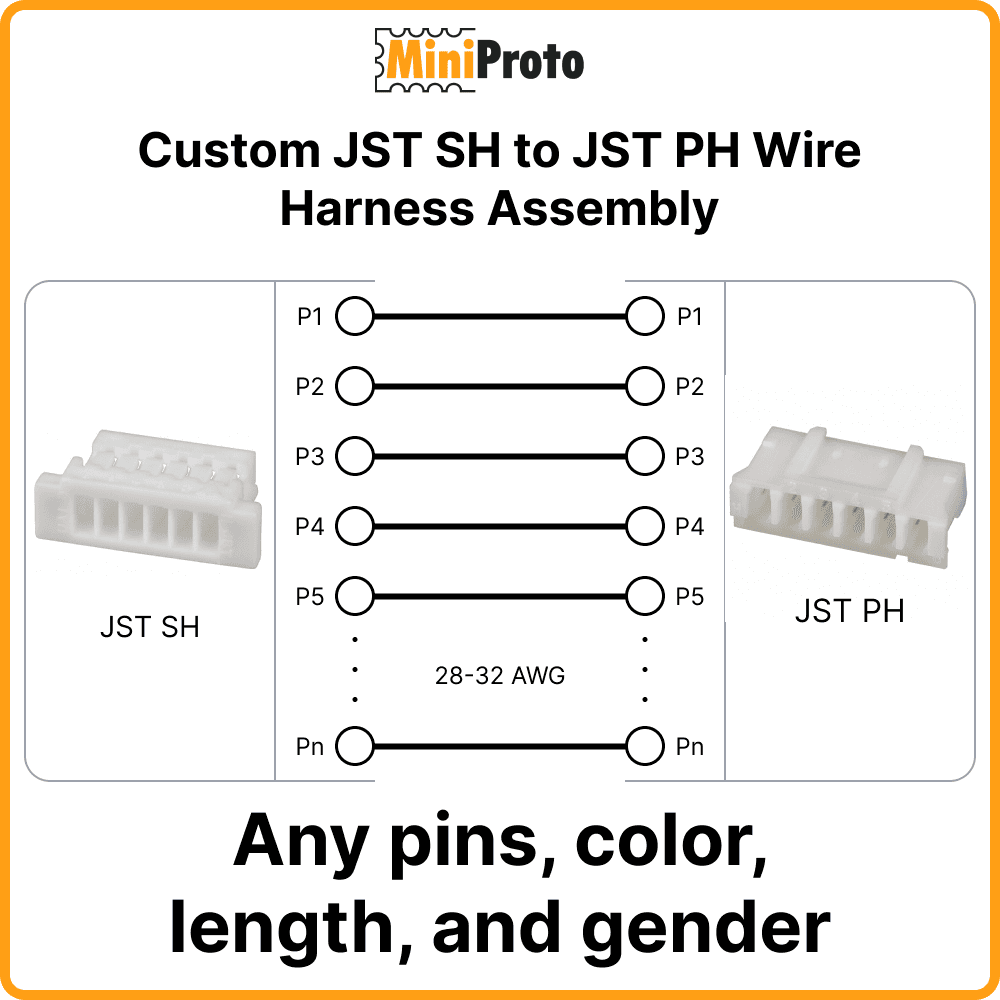

Custom JST SH to JST PH Wire Harness Assembly

Product Details

Explore the Benefits of the JST SH Connector Family

The JST SH connector family is a game-changer in compact and reliable interconnections, ideal for modern electronic applications. Designed to deliver exceptional performance, these connectors are perfect for industries ranging from consumer electronics to automotive systems.

1. Ultra-Compact Design: The JST SH series is known for its 1.0mm pitch, ensuring space efficiency without compromising on connectivity quality.
2. Reliable Performance: Engineered for stability, these connectors provide secure and robust connections, even in high-vibration environments.
3. Versatile Applications: Suitable for a wide range of uses, including LED lighting systems, IoT devices, and portable electronics.
4. Easy Assembly: Features like polarized housings and secure locking mechanisms streamline the installation process.
5. Durable Materials: Built with high-quality materials, JST SH connectors withstand extreme temperatures and harsh conditions.

Choose the JST SH connector family for your next project and experience the perfect blend of size, efficiency, and reliability.

Benefits of JST PH Connectors

JST PH connectors are popular for their small size and reliability, making them a top choice for compact, low-power applications. Here’s why they’re an ideal solution:

• Ultra-Compact Design
  With a 2.0mm pitch, JST PH connectors are even smaller than JST XH connectors, offering a space-saving solution for densely packed electronics.
• Cost-Effective Reliability
  Known for their affordability, JST PH connectors provide a secure and consistent connection, balancing cost with reliable performance.
• Ideal for Low-Power Applications
  Designed for low-power, low-current uses, JST PH connectors are perfect for small electronics, sensors, and battery connections.
• Secure Locking Mechanism
  JST PH connectors feature a firm locking system that prevents accidental disconnection, essential for applications where stability is key.
• Easy to Use and Install
  Simple to assemble and connect, JST PH connectors make installation quick and reduce errors, saving time in the assembly process.
• Flexible Configurations
  Available in multiple pin counts and wire lengths, JST PH connectors are versatile enough to meet various design specifications.

JST PH connectors offer a compact, affordable, and reliable option for low-power applications, ideal for projects requiring small, dependable connections.

Why Choose MiniProto for Custom Wire Harnesses?

MiniProto stands for quality and customer confidence. Here’s why we’re the trusted choice:

• Comprehensive Warranty
  Every harness is backed by a 60-day manufacturing warranty with hassle-free returns for any defects. We’re committed to ensuring each order meets your standards.
• Rapid Turnaround
  With prototypes assembled in the USA, we offer delivery within 1-2 weeks to keep your projects on track.
• Flexible Ordering
  MiniProto adapts to any project scale, from single prototypes to large production runs, with no minimum order requirements.
• Transparent Pricing
  We provide upfront, clear pricing so you can design and budget with confidence—no hidden fees or unexpected costs.

Why Choose MiniProto for Robotics?

MiniProto is the go-to partner for robotics engineers needing fast, reliable, and custom wire harness solutions. Here’s why MiniProto stands out for robotics applications:

• Precision & Durability
  Our wire harnesses are designed to meet the high-performance and durability requirements of robotic systems, ensuring reliable connections for even the most demanding applications.
• Fast, Streamlined Ordering
  MiniProto’s user-friendly platform allows you to design, configure, and order custom harnesses quickly, with real-time pricing so you can stay within budget and move projects forward without delays.
• Rapid Prototyping & Production Support
  We support both single-unit prototypes and production-scale orders, making it easy to transition from initial design to full-scale manufacturing as your robotics project grows.
• USA-Based Assembly & Quality Control
  All harnesses are assembled in the USA under strict quality standards, providing dependable products while keeping lead times short and minimizing logistics complexity.
• Commitment to Sustainability
  MiniProto is dedicated to sustainable manufacturing practices, reducing waste and embracing efficiency throughout our production process.
• Flexible, Scalable Solutions
  Our no-minimum order policy and fast reordering options mean that MiniProto adapts as your robotics needs evolve, offering flexible solutions that grow with your projects.

With MiniProto, you’re choosing a trusted partner in robotics innovation, providing reliable components that ensure your designs are as robust and adaptable as your vision.
