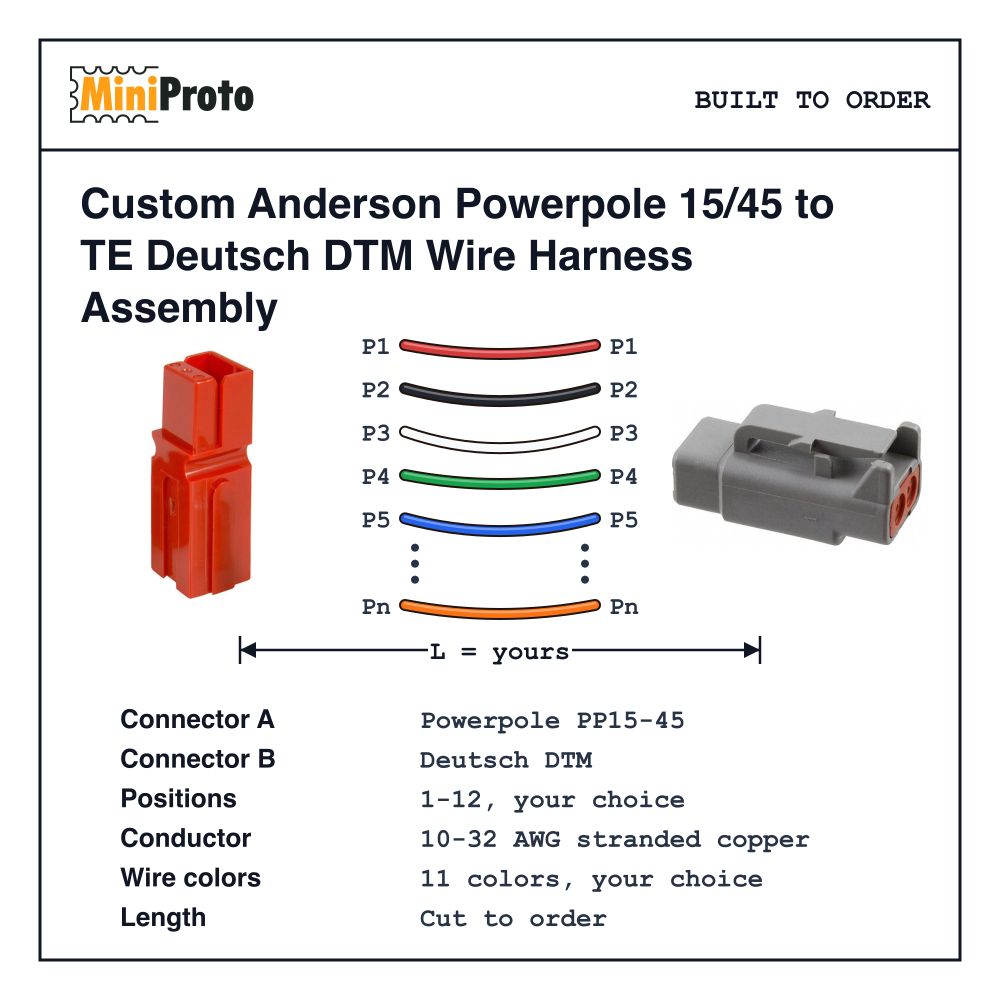

Custom Anderson Powerpole 15/45 to TE Deutsch DTM Wire Harness Assembly
Custom Anderson Powerpole 15/45 to TE Deutsch DTM Wire Harness Assembly, proudly assembled in the USA and built to the production lead time shown at checkout. Fully customizable pin count, length, and gender. Perfect for automotive, aerospace, and industrial power applications. Built for durability and performance—order now for a reliable, high-quality wiring solution tailored to your needs!
Production lead time: 2-4 weeks.
| Pin counts stocked | 1, 2, 3, 4, 6, 8, 12 |
|---|---|
| Housing MPNs | 1327-BK, 1327G6-BK, 1327G17-BK, 1327G5-BK, 1327G7-BK, 1327G8-BK, 1327G22-BK, 1327G16-BK, 1327G18-BK, 1327G21-BK, 1327G23-BK, DTM06-2S, DTM04-2P, DTM06-3S, DTM04-3P, DTM06-4S, DTM04-4P, DTM06-6S, DTM04-6P, DTM06-08SB, DTM06-08SD, DTM06-08SA, DTM06-08SC, DTM04-08PC, DTM04-08PA, DTM04-08PD, DTM04-08PB, DTM06-12SA, DTM06-12SB, DTM06-12SC, DTM06-12SD, DTM04-12PA, DTM04-12PB, DTM04-12PC, DTM04-12PD |
| Crimp / seal | Powerpole PP15-45 crimps 1332-BK (20–16 AWG, 15A) or 1331-BK (16–12 AWG, 30A); housings are unsealed friction-fit. DTM size-20 contacts 0460-202-2031 pin / 1062-20-0144 socket, required WM-series wedgelocks; unused cavities take sealing plugs so the sealed shell stays sealed. DTM is up to 7.5 A on 18–24 AWG by contact; Powerpole 15 A / 30 A and 16–12 AWG 1331-BK ratings do not apply at the DTM end. Shared conductor is 18–20 AWG on the Powerpole 1332-BK contact. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 2-4 weeks |
{
"connectors": [
{
"ref": {
"mpn": "1327-BK"
},
"side": "left"
},
{
"ref": {
"mpn": "1327-BK"
},
"side": "left"
},
{
"ref": {
"mpn": "DTM06-2S"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 2,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
},
{
"sourceConnector": 1,
"sourcePin": 1,
"targetConnector": 2,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
}
]
}
