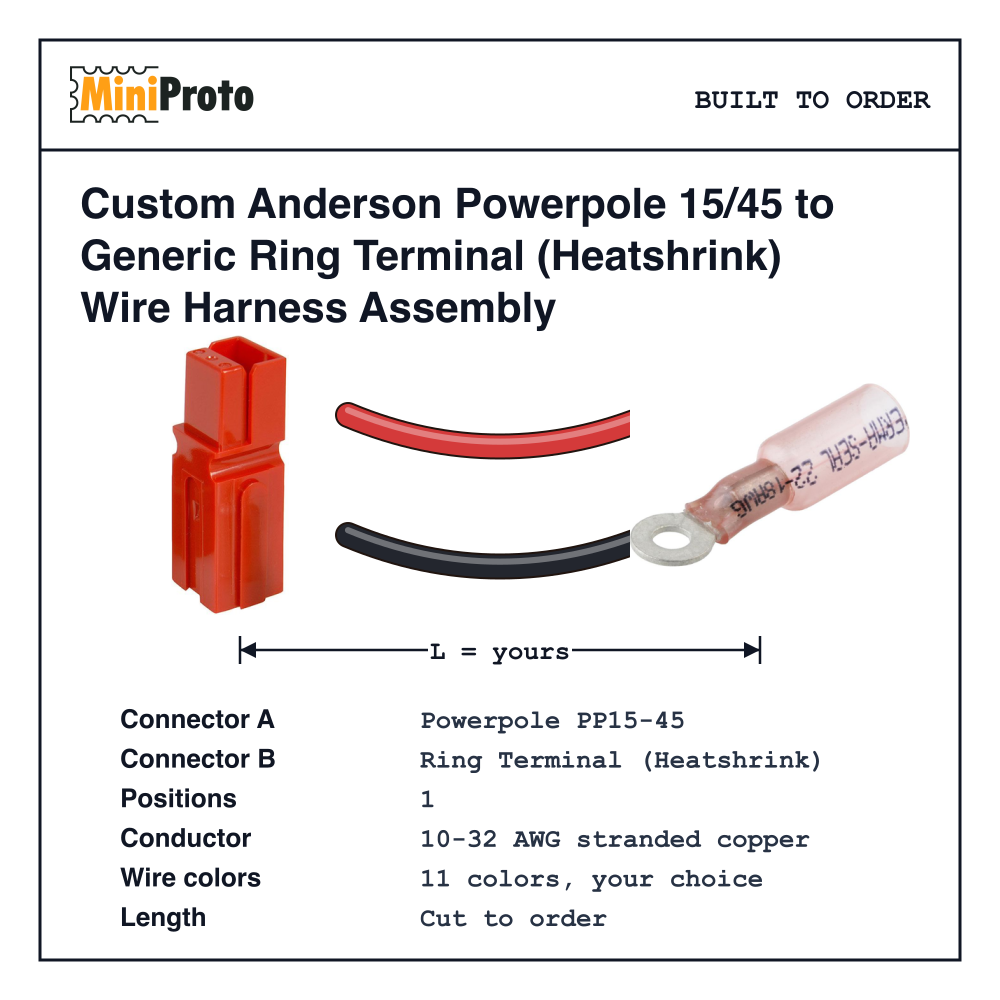

Custom Anderson Powerpole 15/45 to Generic Ring Terminal (Heatshrink) Wire Harness Assembly
Custom Anderson Powerpole 15/45 to Generic Ring Terminal (Heatshrink) Wire Harness Assembly, proudly assembled in the USA with a fast two-week lead time. Fully customizable pin count, length, and gender. Perfect for battery connections, solar power setups, and industrial equipment. Anderson Powerpole ensures quick, modular connections, while heatshrink ring terminals provide secure, corrosion-resistant wiring. Upgrade your power solutions today with this high-performance, durable harness built to last!
| Pin counts stocked | 1 |
|---|---|
| Housing MPNs | 1327-BK, 1327G6-BK, 1327G17-BK, 1327G5-BK, 1327G7-BK, 1327G8-BK, 1327G22-BK, 1327G16-BK, 1327G18-BK, 1327G21-BK, 1327G23-BK, 191640033, 191640032, 0191640003, 0191640085, 0191640086, 191640038, 0191640026, 191640061, 0191640063, 0191640027, 191640062, 0191640004, 0191640005, 0191640020, 191640066, 191640067, 191640068, 0191640081, 0191640083, 0191640080, 191640889 |
| Crimp / seal | PP15-45 crimps 1332-BK (20–16 AWG, 15A) or 1331-BK (16–12 AWG, 30A). Genderless housings are unsealed friction-fit; standard and finger-proof styles do not cross-mate. Heatshrink ring terminals crimp onto the conductor and shrink over the barrel; they are not sealed connector cavities. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "1327-BK"
},
"side": "left"
},
{
"ref": {
"mpn": "191640033"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
}
]
}
