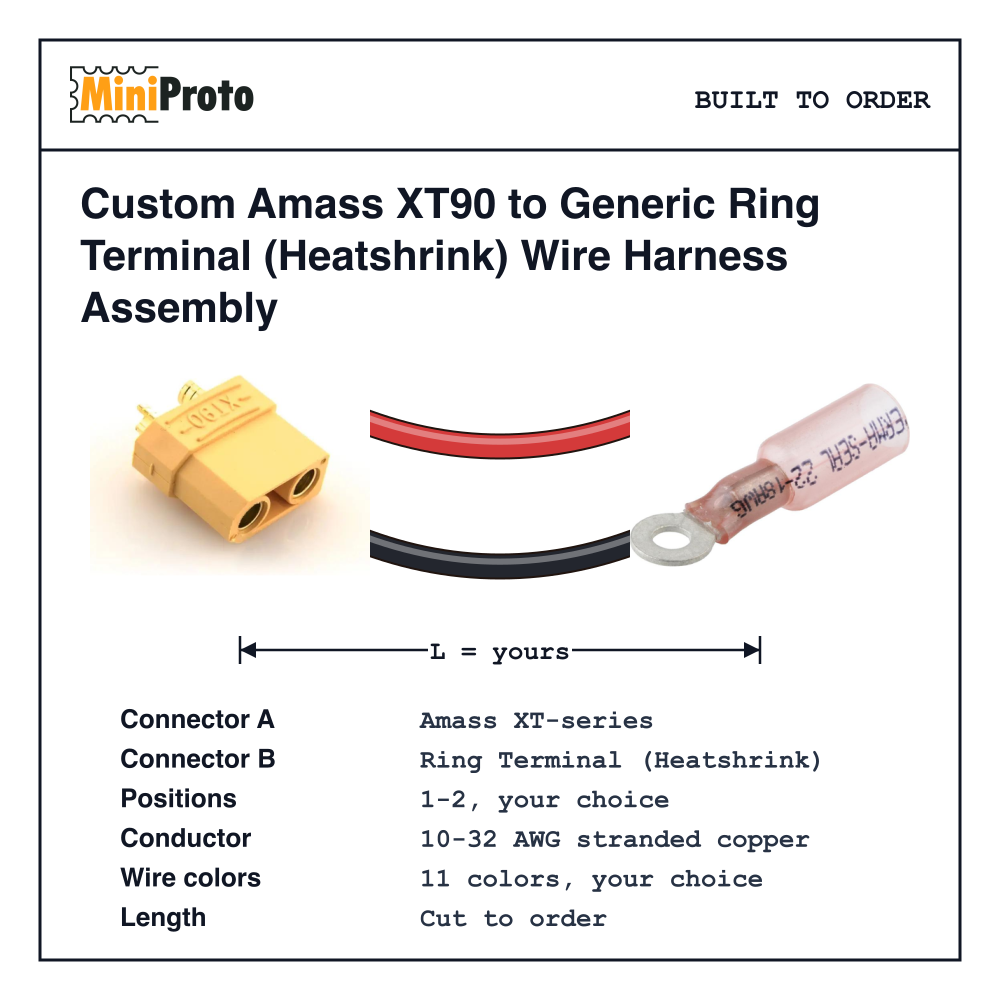

Custom Amass XT90 to Generic Ring Terminal (Heatshrink) Wire Harness Assembly
Custom Amass XT90 to Generic Ring Terminal (Heatshrink) Wire Harness Assembly, proudly assembled in the USA with a fast two-week lead time. Fully customizable pin count, length, and gender. Ideal for high-power battery packs, off-grid solar systems, and electric vehicles. The Amass XT90 provides superior high-current efficiency, while heatshrink ring terminals ensure secure, corrosion-resistant connections. Upgrade today with this durable, precision-engineered harness for maximum power and reliability!
| Pin counts stocked | 1, 2 |
|---|---|
| Housing MPNs | XT90, F/Rec; XT90, M/Plug; 191640033; 191640032; 0191640003; 0191640085; 0191640086; 191640038; 0191640026; 191640061; 0191640063; 0191640027; 191640062; 0191640004; 0191640005; 0191640020; 191640066; 191640067; 191640068; 0191640081; 0191640083; 0191640080; 191640889 |
| Crimp / seal | XT90 uses solder cups, not crimps; XT90H back cover organizes the solder-joint area but does not seal the gold-and-yellow two-pole interface. Amass catalog current is 45 A max for XT90H and XT90S-F with 10 AWG. Heatshrink ring terminals crimp onto the conductor and shrink over the barrel; they are not sealed connector cavities. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "XT90, F/Rec"
},
"side": "left"
},
{
"ref": {
"mpn": "191640033"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "Silicone",
"lengthMm": 150
}
]
}
