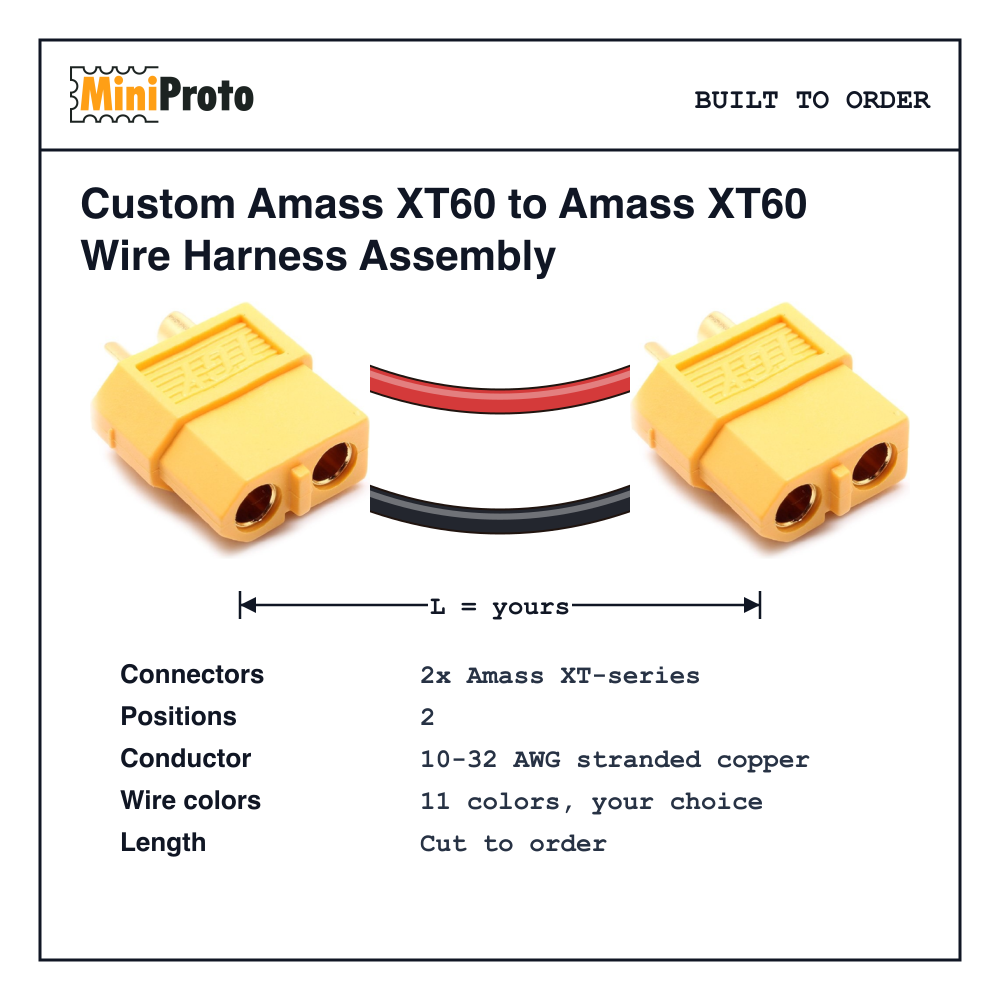

Custom Amass XT60 to Amass XT60 Wire Harness Assembly
Our Custom Amass XT60 to XT60 wire harness assembly is tailored to deliver a robust, high-power connection for applications like electric vehicles, power tools, and drones. Fully customizable with options for wire length, gauge, and configuration, this harness is designed for durability and ships in just two weeks for fast, seamless integration.
| Pin counts stocked | 2 |
|---|---|
| Housing MPNs | XT60, F/Rec; XT60, M/Plug; XT60, F/Rec w/Protector; XT60, M/Plug w/Protector |
| Crimp / seal | Solder cups, not crimped. XT60H back cover organizes the solder-joint area but does not convert the gold-and-yellow two-pole interface into a sealed system. |
| Gauge range | 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG |
| Length range | 100–5000 mm |
| Lead time | 20–40 business days |
{
"connectors": [
{
"ref": {
"mpn": "XT60, F/Rec"
},
"side": "left"
},
{
"ref": {
"mpn": "XT60, F/Rec"
},
"side": "right"
}
],
"wires": [
{
"sourceConnector": 0,
"sourcePin": 1,
"targetConnector": 1,
"targetPin": 1,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
},
{
"sourceConnector": 0,
"sourcePin": 2,
"targetConnector": 1,
"targetPin": 2,
"gauge": "20 AWG",
"color": "red",
"wireFamily": "GXL",
"lengthMm": 150
}
]
}
